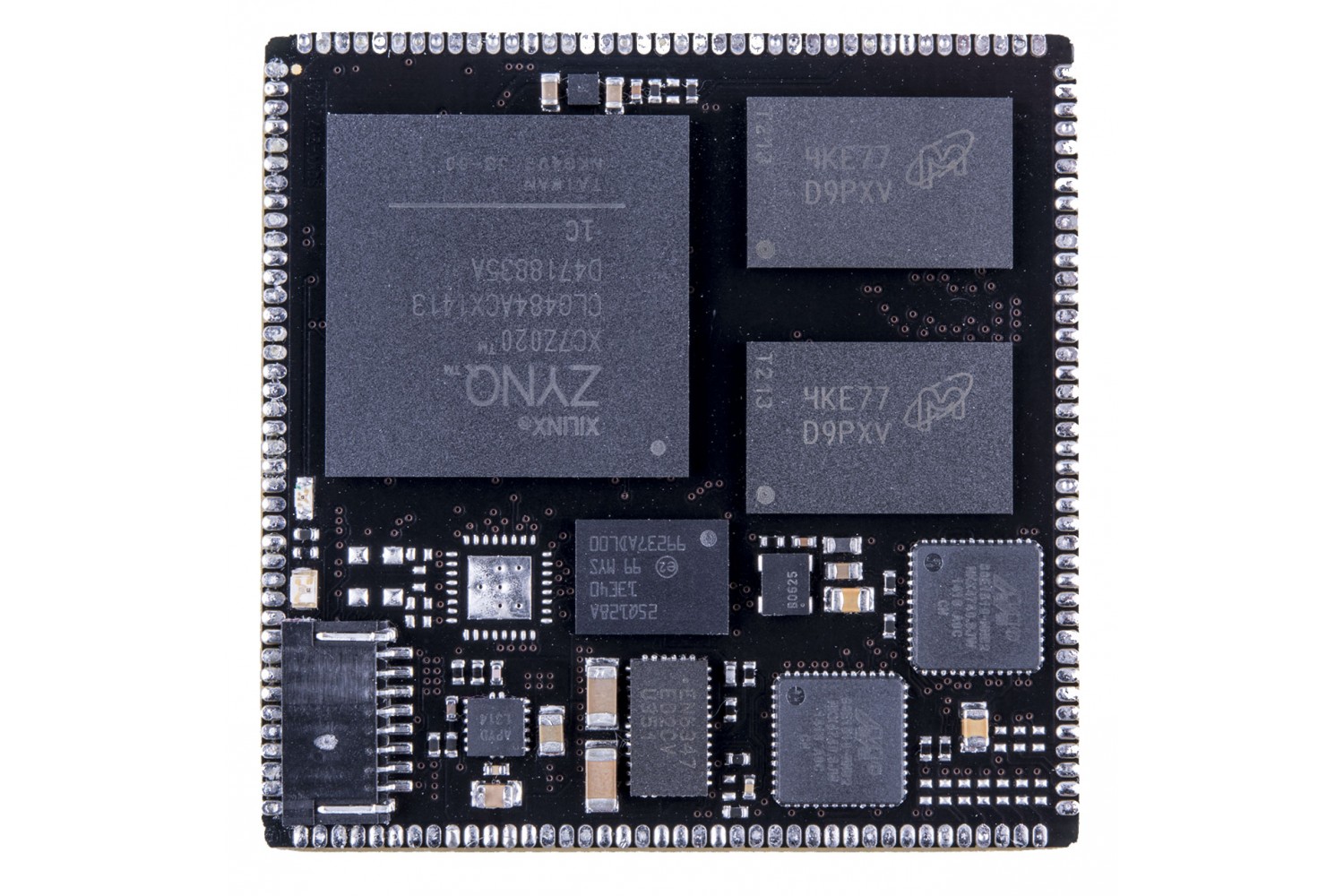

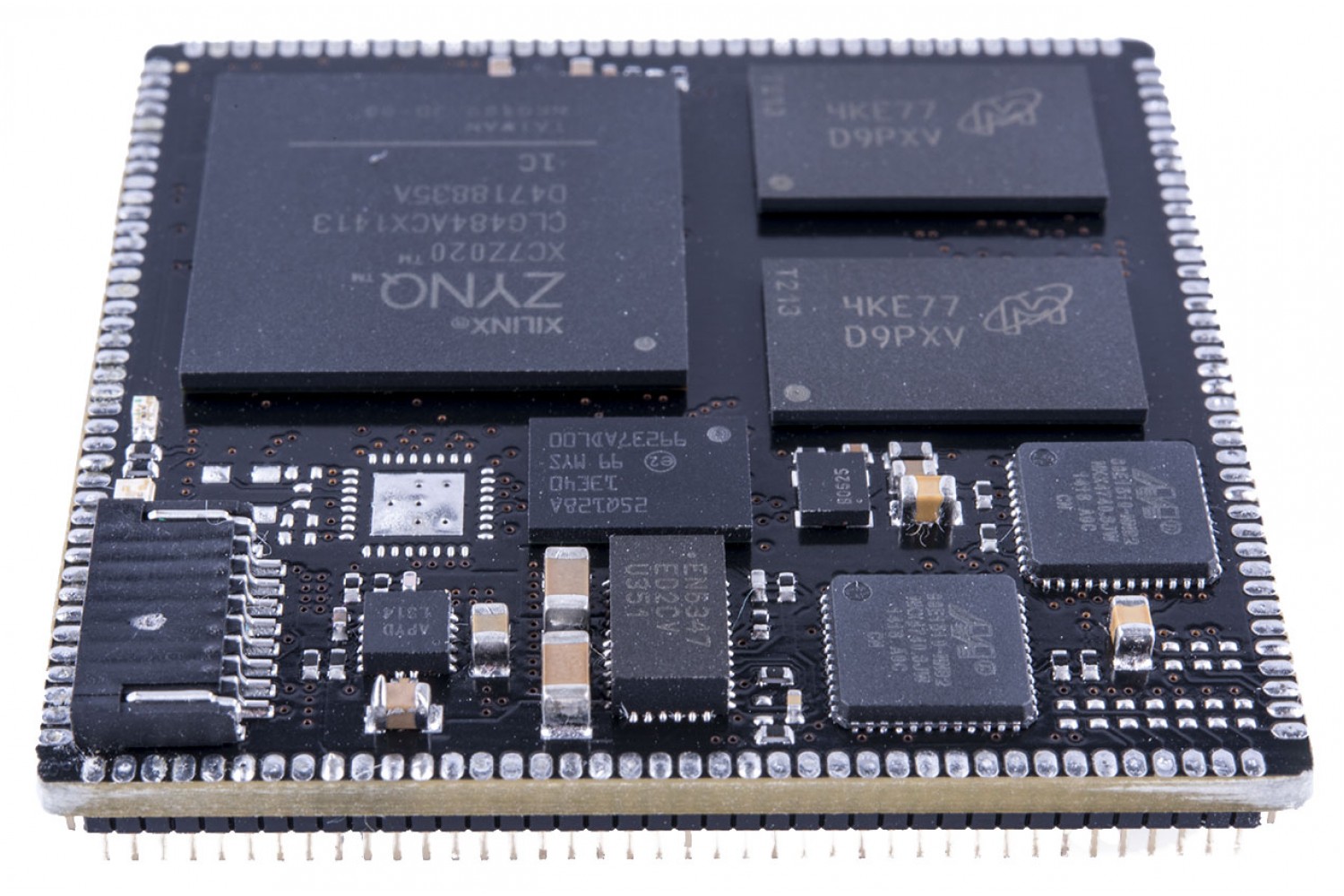

System-on-module with dual core microprocessor ZYNQ XC7Z020 from the SQM^® modules serie. Besides the ARM Cortex A9 dual core microprocessor with 256kB of on chip dual port SRAM memory (OCM) accessible from PS and PL, it disposes of a 1 GB DDR3 SDRAM memory, 16 MB QSPI NOR FLASH memory, Gigabit Ethernet, USB and a wide range of other peripherals connectable via up to 141 GPIO. Quick and easy development is ensured by a JTAG connector. All this compressed on 16 cm² only.

SQM4-ZY7 is a solderable computer module based on the Xilinx Zynq ZC7020 - All Programmable SoC which combines Dual Core ARM Cortex A9 microprocessor and FPGA programmable logic. The SQM4-ZY7 module adds the key peripheral circuitry needed to successfully use the Zynq device in a high-performance applications. Unique SQM4-ZY7 layout and mechanics enables to minimize total application cost by concentrating most of the hard-to-route and timing-sensitive signals on the module board. This approach not only simplifies design and routing of the application board; it also enables faster prototyping and shortens the total development time.

The module is offered in two variants:

• SQM4-ZY7-U features a USB 2.0 PHY and Gigabit Ethernet PHY.
• SQM4-ZY7-L features 2x Gigabit Ethernet PHY.

In addition to Zynq ZC7020 device, the module contains on board LPDDR3 memory, QSPI boot Flash, Gigabit network PTP-capable PHY with an option for 2nd Gigabit PHY or USB Host/Device PHY and RTC device. The module requires a single 5V/1A power supply input; additional required power levels are generated on board (3.3V, 1.8V, 1.35V and 1.0V levels).

For complete list of ZC7020 SoC features, please visit www.xilinx.com.

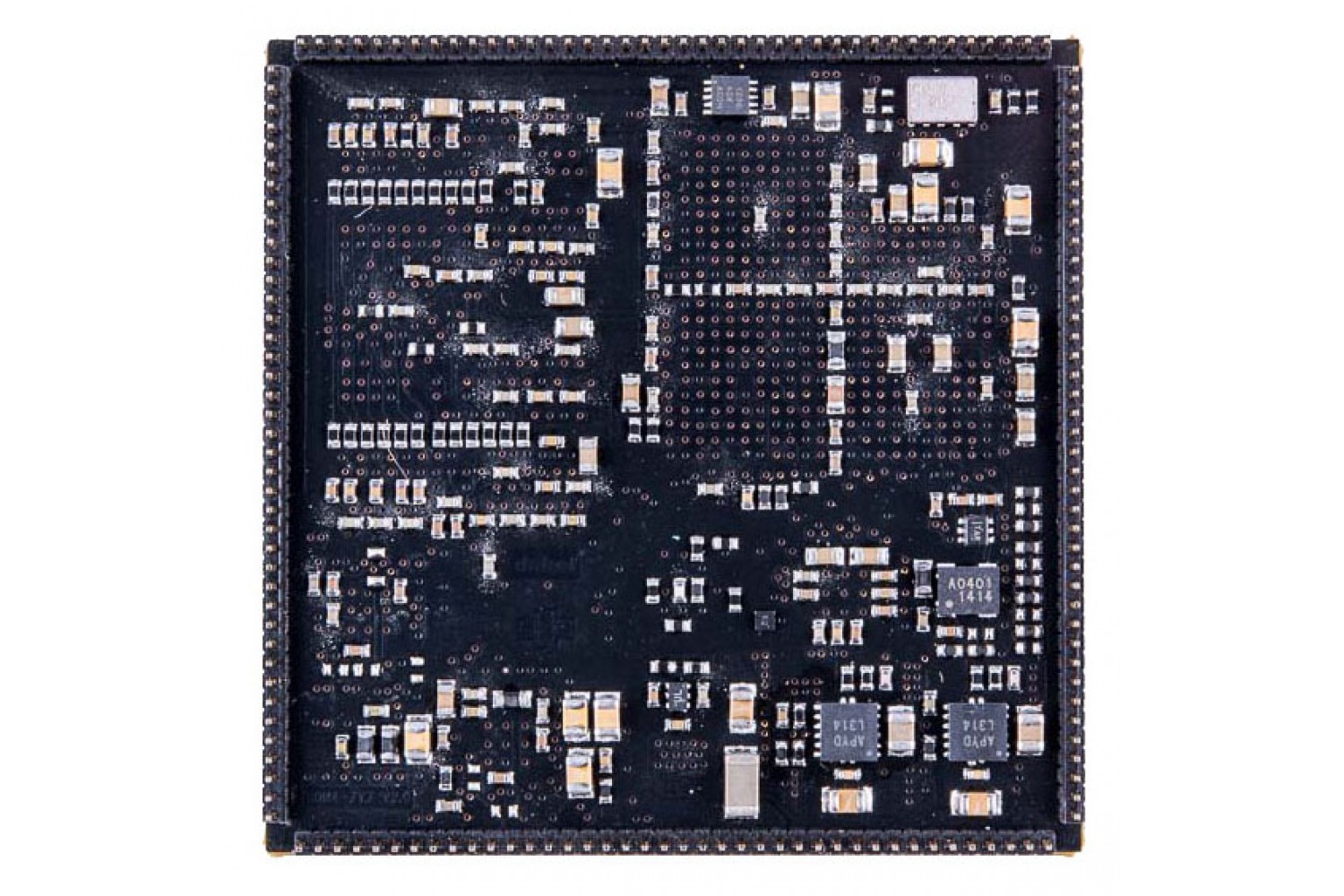

The module is placed on a thin ledge allowing the parts placement on both sides. Together with a high degree of integration it minimizes the module size, giving also an option to use the surface of motherboard for other (hidden) components. Rapid simplification of the motherboard circuits leads to usability of cheaper production technology and hence a significant price cut. The module is intended to be soldered directly on the board using the squared connection, providing 4 ways of assemblage - solderable pin, edge holes, RIM^® or removable socket header connector.

For a quick prototyping and evaluating the SQM4 modules, consider using of the EasyBoard development kit which can be ordered at EasyBoard, a development board expanding the most of the peripherals available on the module. The board itself illustrates how usage of SQM4 modules serie allows to produce full-fledged embedded device on simple two-layer board. The EasyBoard enables the SQM4 module to be connected to display, I2C-based accelerometers, I2S audio system, RS232 and CAN communication interfaces and more.

Features

• MPU ZYNQ XC7Z020 dual core A9 and rich FPGA
• Compact 43x43 mm design
• Single 5V power supply
• 3.3V I/O pin operation
• 3.3V output for motherboard logic (max 300 mA)
• Precise differntial DDR3 and dual Gigabit Ethernet routing for maximum robustness
• 25MHz clock to PL, 33.333MHz clock to PS
• LVDS I/O with programmamble power supply
• JTAG connector

Zynq SoC features directly usable with SQM4-ZY7 module

• Dual ARM Cortex-A9 CPUs suitable for asymmetrical (AMP) or symmetrical multiprocessing (SMP) configurations
• ARM v7 ISA: standard ARM instruction set and Thumb®-2, Jazelle® RCT and Jazelle BX Java™ acceleration
• NEON 128b SIMD coprocessor and VFPv3 per core
• 32KB instruction and 32KB data L1 caches with parity per core
• 512 KB of shareable L2 cache with parity and Snoop Control Unit to maintain cache coherency
• Core-private timers and watchdog timers per core
• 256KB of on-chip dual port SRAM memory (OCM) accessible from PS and PL
• Standard ARM DMA controller and GIC interrupt controller
• Rich PS-to-PL AXI interconnectivity interface, interrupt lines, clock and reset signals
• DDR Controller, by default connected to on-board 1Gbyte LPDDR3 memory in 2x256Mx16 configuration
• Two Tripple-Counter/Timer modules
• 33 dedicated peripheral MIO pins available on edge connector
• 111 general purpose programmable-logic IO pins availabe on edge connector (29 pins at Bank34, 34 pins at Bank35 and 48 pins at Bank 13)
• Power supply of IO Bank13 adjustable from 1.5V to 3.3V; controlled by a resistor external to SQM module
• All edge connector IO pins routed as LVDS differential pairs for timing sensitive applications
• 1x/2x Gigabit Ethernet module connected to on-board Marvel 88E1510 PHY
• 1x/0x USB 2.0 High-speed Host/Device/OTG controller connected to on-board Microchip USB3300 ULPI PHY
• QSPI controller with execute-in-place capability connected to on-board N25Q128 16Mbyte serial Flash
• I2C module connected to module edge connector and also to on-board AB-RTCMC Real Time Clock device
• SPI, UART and CAN communication modules connected to module edge connector
• SD Card interface signals connected to module edge connector
• Additional I2C, SPI, UART and CAN communication modules with EMIO connectivity to PL and from PL to any edge connector pins
• Module also available in the ZY7-U - USB 2.0 High-speed Host/Device/OTG controller connected to on-board Microchip USB3300 ULPI PHY

Peripherals

• PS - UART
• PS - SPI
• PS - I2C
• PS - Dual Gbit Ethernet
• PS - 33 dedicated peripheral MIO pins available on edge connector
• PL - ut to 111 FPGA I/O
• PL - up to 48 LVDS I/O with programmamble power supply
• A/D converter
• I2C - RTC with batery powered memory RAM
