ESL (Elnico Support Library)

Elnico Support Library is a multiplatform library built on top of MQX4. Its purpose is to simplify use of often used functionalities and enable quick composition of your application from the library modules.

Modularity

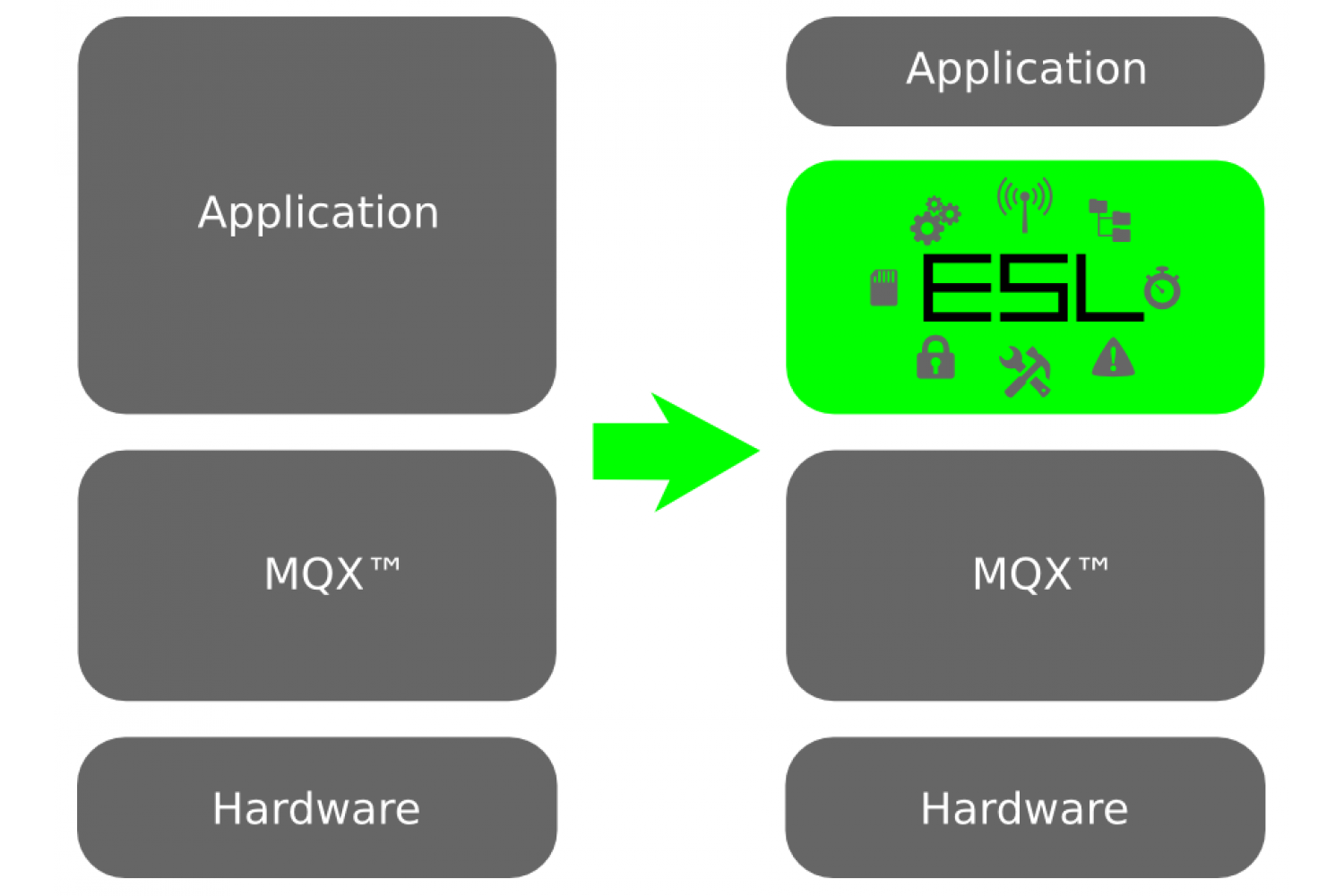

Elnico Support Library diagramThe library consists of the following modules:

  • appctrl - application control mechanisms,
  • cfg - config files parser and writer,
  • crc - cyclic redundancy check,
  • fs - useful filesystem functions,
  • gpio - GPIO interrupts demultiplexer,
  • i2c - I2C communication,
  • keyboard - easy to use keyboard module,
  • log - logging task,
  • mcfs - virtual multicore filesystem,
  • nand - NAND flash file system,
  • rtc - real time controller,
  • sd - SD card,
  • spi - SPI bus control,
  • spimem - SPI memory control,
  • td - time domains.
  • usbh - USB host control,
  • wifi - Atheros wifi control.

Each of the modules can be used independently on the rest, allowing to turn off all unneeded modules in a simple config file, which effectively reduces the size of the final application.

Documentation

The library consists of well documented source files and several demo applications presenting the library use in practise.

Cost

Binaries built for EasyBoard Development Kit are available without any fee for both SQM4-K70 and SQM4-VF6 platforms.

Library source files are available for only 599€, including 6 months support with free updates.

ESL (Elnico Support Library) ESL (Elnico Support Library)
Brand: ELNICO
Product Code: esl-library
Availability: Out Of Stock
Price: $748.75
Qty:
Filename Description Date added Download link
ESL: Getting Started Getting Started document for the Elnico Support Library. 2014-10-09 20:22:39 esl_getting_started.pdf
ESL 1.003 API Public library API and library binaries built for EasyBoard with the SQM4-K70 and SQM4-VF6 modules. 2014-04-08 07:55:55 To download this file you must be logged!
ESL 1.004 API Public library API and library binaries built for EasyBoard with the SQM4-K70 and SQM4-VF6 modules. 2014-05-02 15:48:45 To download this file you must be logged!
ESL 1.005 API Public library API and library binaries built for EasyBoard with the SQM4-K70 and SQM4-VF6 modules. 2014-07-01 08:48:58 To download this file you must be logged!
ESL 1.006 API Public library API and library binaries built for EasyBoard with the SQM4-K70 and SQM4-VF6 modules. 2014-09-01 12:55:06 To download this file you must be logged!
ESL 1.007 API Public library API and library binaries built for EasyBoard with the SQM4-K70 and SQM4-VF6 modules. 2014-10-09 20:41:18 To download this file you must be logged!
ESL 1.008 API Public library API and library binaries built for EasyBoard with the SQM4-K70 and SQM4-VF6 modules. 2014-11-26 17:57:37 To download this file you must be logged!
ESL 1.009 API Public library API and library binaries built for EasyBoard with the SQM4-K70 and SQM4-VF6 modules. 2015-04-15 11:49:09 To download this file you must be logged!
ESL 1.010 API Public library API and library binaries built for EasyBoard with the SQM4-K70 and SQM4-VF6 modules. 2015-11-04 15:29:21 To download this file you must be logged!
ESL 1.011 API Public library API and library binaries built for EasyBoard with the SQM4-K70 and SQM4-VF6 modules. 2016-03-08 16:58:56 To download this file you must be logged!
ESL 1.012 API Public library API and library binaries built for EasyBoard with the SQM4-K70 and SQM4-VF6 modules. 2016-08-14 22:08:00 To download this file you must be logged!
ESL 1.003 FULL Full library distribution - source files, demo applications, IAR build project and documentation. 2014-04-08 08:01:03 To download this file you must buy this product!
ESL 1.004 FULL Full library distribution - source files, demo applications, IAR build project and documentation. 2014-05-02 15:47:38 To download this file you must buy this product!
ESL 1.005 FULL Full library distribution - source files, demo applications, IAR build project and documentation. 2014-07-01 08:48:05 To download this file you must buy this product!
ESL 1.006 FULL Full library distribution - source files, demo applications, IAR build project and documentation. 2014-09-01 12:56:10 To download this file you must buy this product!
ESL 1.007 FULL Full library distribution - source files, demo applications, IAR build project and documentation. 2014-10-09 20:41:59 To download this file you must buy this product!
ESL 1.008 FULL Full library distribution - source files, demo applications, IAR and CW build projects and documentation. 2014-11-26 17:58:56 To download this file you must buy this product!
ESL 1.009 FULL Full library distribution - source files, demo applications, IAR and CW build projects and documentation. 2015-04-15 11:50:10 To download this file you must buy this product!
ESL 1.010 FULL Full library distribution - source files, demo applications, IAR and CW build projects and documentation. 2015-11-04 15:29:58 To download this file you must buy this product!
ESL 1.011 FULL Full library distribution - source files, demo applications, IAR and CW build projects and documentation. 2016-03-08 16:59:31 To download this file you must buy this product!
ESL 1.012 FULL Full library distribution - source files, demo applications, IAR and CW build projects and documentation. 2016-08-14 22:08:46 To download this file you must buy this product!
