| 5 or more | $13.44 |
| 10 or more | $13.16 |

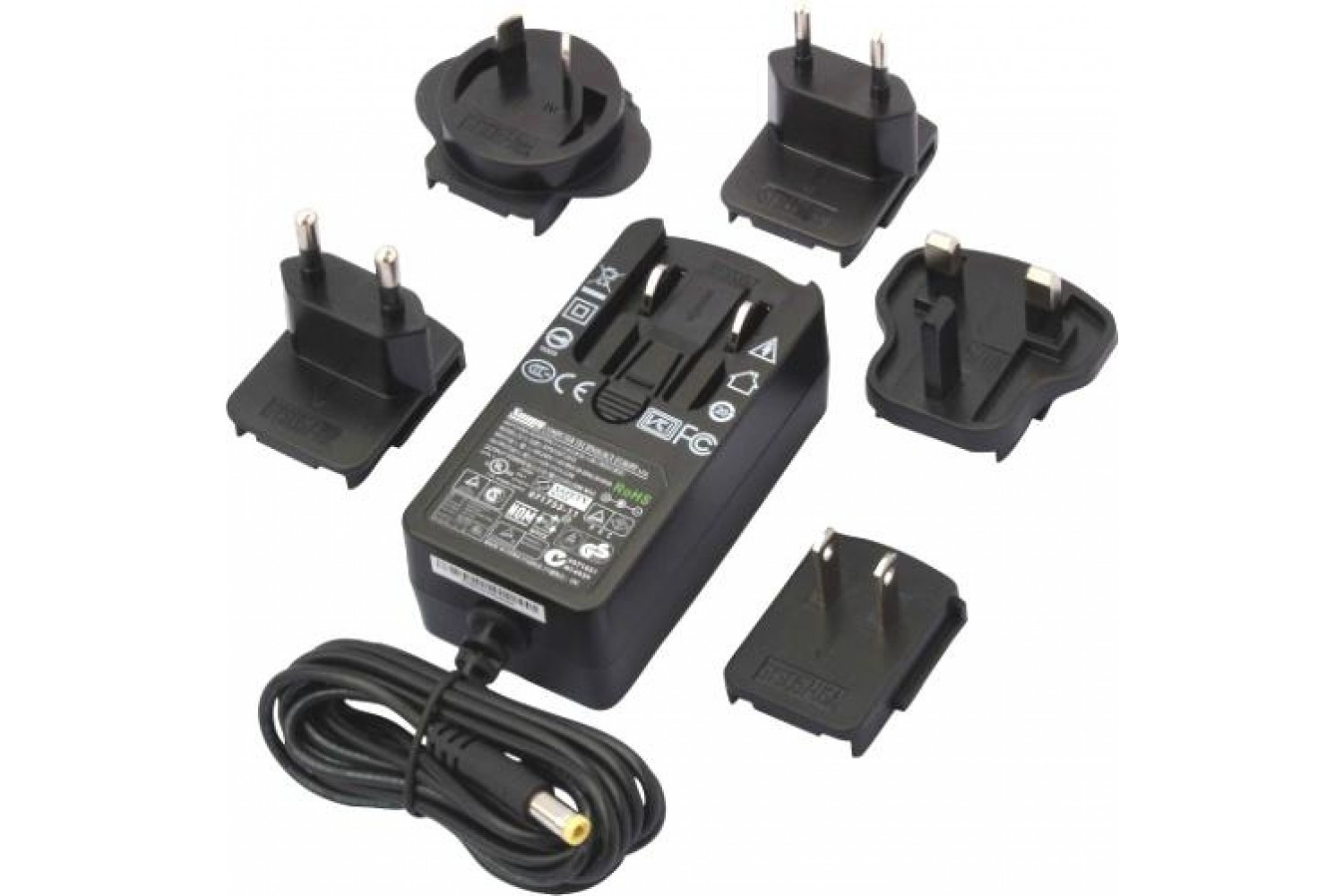

Wall-mount adapter with exchangeable AC plugs, wide range input 90-264VAC 47-63Hz, output 12VDC/2A, output connector 5.5x2.1x11mm, user can choose from W2E (Europe), W2 (USA, China, Japan, Canada), W3U (UK) plugs
| Filename | Description | Date added | Download link | |
|---|---|---|---|---|
| sys1357_series | Datasheet of AC/DC plug adapter | 2014-03-25 20:18:55 | sys1357_series.pdf |
| Specification | |
| Interconnect | Power JACK 5.5 x 2.1 x 11 mm |
| Electrical | |
| Supply Voltage | 90-265 VAC |
| Supply Current | 1A @ 90 VAC |
| Output Voltage | 12 VDC |
| Output Current | 2 A |
| Mechanical | |
| Dimensions (W x H x D) | 93.5 x 46.0 x 36.2 mm |
| Weight | 155 g |
| Condition | |
| Operating Temperature | 0 - 40°C |
| Operating Ambient Humidity | 8 - 90 % |
| Safety | |
| EMC | EN55022, EN61000-3-2, EN61000-3-3, EN55024, EN61000-4-2, EN60950-1, LVD2006/95/EC, IEC60950-1, IRAM 2063 |
| Approvals | GE, GS, UL, CB, NOM, S-Mark, PSE, FCC, CCC, VCC1, BSMI, EKMark, T-Mark, C-Tick, PSB, DOIR, SAA/Victoria |
