RT9293BGJ6

RT9293BGJ6
Brand: RICHTEK
Product Code: RT9293BGJ6
Availability: Out Of Stock
Price: $2.25

5 or more $2.16
10 or more $2.12
Qty:

The RT9293BGJ6 is a high performance asynchronous boost converter for 10 WLED Driver. The internal MOSFET can support up to 10 White LEDs for backlighting and OLED power application, and the internal soft start function can reduce the inrush current.

This device operates with 1-MHz fixed switching frequency to allow small external components and to simplify
possible EMI problems. It provides 50 V/20 V OVP to allow inexpensive and small-output capacitors with lower voltage ratings. The LEDcurrent is initially set  with the external sense resistor RSET.

Features:

  • VIN Operating Range : 2.5 V to 5.5 V
  • Internal Power N-MOSFET Switch
  • Wide Range for PWM Dimming (100Hz to200kHz)
  • Minimize the External Component Counts
  • Internal Soft Start
  • Internal Compensation
  • Under Voltage Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • Small TSOT-23-6 and 8-Lead WDFN Packages
  • RoHS Compliant and Halogen Free

Applications:

  • Cellular Phones
  • Digital Cameras
  • PDAs and Smart Phones and MP3 and OLED
  • Portable Instruments
Filename Description Date added Download link
RT9293BGJ6 Datasheet of LED backlight driver 2014-03-27 19:31:45 RT9293BGJ6.pdf
There are some files to download. If you purchased this product, you can find available files here.
Processor

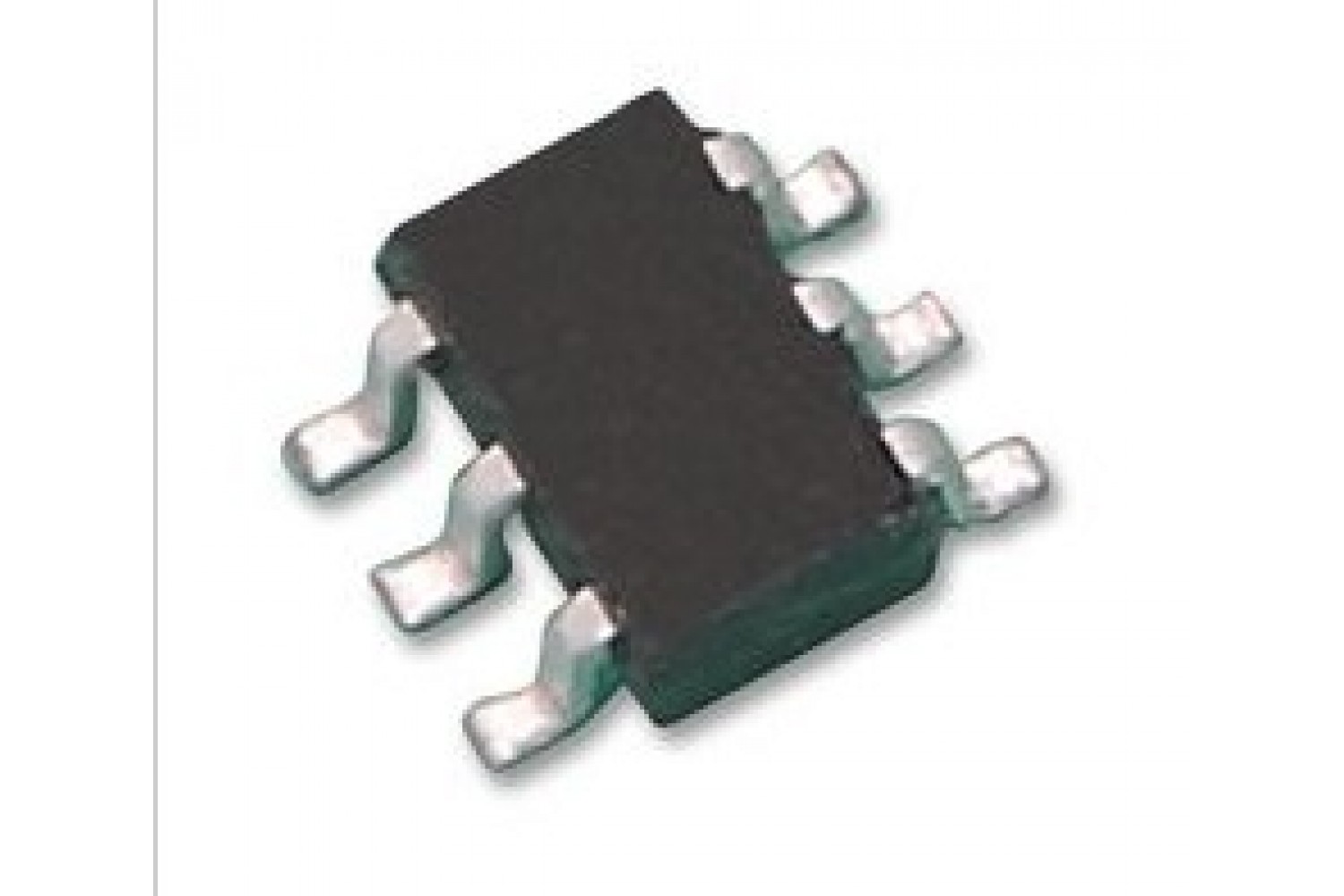

Core TSOT-23-6
Frequency Up to 1.25 MHz
Electrical
Supply Voltage 3-5V DC
Mechanical
Dimensions (W x H x D) 3 x 3 x 1 mm
Weight 1 g
